1Fix the driver behind crashes, sound loss and screen glitches2Repair Windows errors before they cause bigger problems3Scan for outdated or missing drivers - takes under a minuteAn alternator supplies electrical power while the engine runs, and the battery stores energy for starting and for loads the alternator cannot meet. The alternator generates AC internally; a rectifier converts it to DC, while a regulator controls output voltage. Whether the battery is charging at any moment depends on the charging system’s voltage, the battery’s state, and the power being used.
What does an alternator output?
An alternator is an AC generator. Its rectifier changes that output to DC for the vehicle’s electrical system and battery, and its regulator controls or limits voltage. The U.S. Navy’s NAVEDTRA 14081A explains that alternators are more compact than generators of equal output and can provide higher current at low engine speeds; actual output still depends on the particular equipment and operating conditions. West Marine’s overview of marine charging systems is useful context, but marine examples should not be treated as specifications for every car.
As the Navy training text puts it, “The charging system performs two jobs: it recharges the battery and during operation, generates current.” That means alternator output is not reserved for the battery: it also powers electrical loads while the engine is running. U.S. Navy, NAVEDTRA 14081A, section 1.2.0.
How does the alternator charge the battery?
For charging to occur, alternator voltage must be higher than battery voltage. Current flows into the battery, and as the battery’s voltage rises during charging, current generally tapers under regulation. The precise behavior depends on the regulator strategy, battery type and condition, temperature, engine speed, and electrical demand. A voltage reading alone does not describe the battery’s state of charge or prove that a charging system is healthy.
What’s actually slowing this PC down?
Pick the symptom - the matching free tool is one click away.
#1 Best Overall
- 8x Faster Than a Cigarette Lighter Charger. The 800W Alternator Charger replenishes 1kWh to a portable power station within a 75-minute drive. It capitalizes on surplus alternator energy, enabling you to power essential devices like phones, coffee makers, and lights while on the move. *Note: Alternator capacity varies by vehicle - Please verify with your manual (or the alternator's manual) that the alternator's output supports the alternator charger's maximum power draw for safe operation.
- 3-in-1 Functional Design. Three integrated features that charge your portable power station, keep your vehicle battery in peak condition and act as a jump starter when you need it most.
- Easy-to-Install System. Enhance your overlanding and vanlife with EcoFlow power stations. Perfect for supplementing your 12V RV house battery, and extending your runtime. It's not just for use in your van, our compact and lightweight power stations can be taken off-grid and used to power the outdoors. *Note: A DELTA Pro to Smart Generator Adapter is required to connect the Alternator Charger with DELTA Pro and DELTA Pro 3.
- Access the EcoFlow App Anywhere. Easily view your vehicle's energy usage in real-time, including power consumption and charging status, anywhere. Monitor and manage your entire vehicle, from temperature to appliance power.
- 2-Year Service&Vehicle Protection. Utilizing GaN technology, the DC-DC Charger efficiently converts electricity, preventing overheating even at high speeds. It safeguards your vehicle from reverse polarity, overcurrent, short circuits, and voltage abnormalities.
Fixed-voltage regulation may not be appropriate for every battery chemistry or a large battery bank. Marine systems may use an external smart regulator to tailor charging; settings and compatibility must follow the battery and equipment manufacturers’ specifications rather than a general-purpose voltage example. West Marine’s marine charging guidance discusses fixed and smart regulation.
How do DC loads and the battery share power?
With the engine running, alternator output is shared between active loads and battery charging. If loads demand more current than the alternator is supplying, the battery can make up the difference. With the engine off, the battery supplies DC loads from stored energy until it is depleted, so running accessories can leave too little energy for starting.
Rank #2
- [5× Faster Than a Car Cigarette Lighter Charger] The 500W Alternator Charger replenishes 1kWh of energy to your portable power station within a 2.1 hour drive, tapping surplus alternator power to keep phones, coffee makers, lights, and more running on the move.
- [3-in-1 Functional Design] Integrates alternator charging, vehicle battery maintenance, and jump-start capability into one compact unit, ensuring your power station tops up, your battery stays healthy, and you're ready for sudden starts.
- [Easy-Install System for Vanlife] Seamlessly integrates with 12V/24V SUV house batteries using plug-and-play wiring to extend runtime on overland and vanlife adventures. Lightweight and portable, it also detaches for off-grid power when you hit the great outdoors.
- [Access the EcoFlow App Anywhere] View real-time vehicle energy usage, power consumption, and charging status remotely. Monitor temperature, appliance loads, and battery health from your smartphone, no matter where you roam.
- [2-Year Service & Vehicle Protection] Built with GaN technology for high-efficiency DC-DC conversion without overheating. Comprehensive safeguards protect against reverse polarity, overcurrent, shorts, and voltage spikes throughout your journeys.
In an RV, for example, batteries commonly supply 12 VDC loads. An inverter can convert battery DC to AC for appliances designed to use AC, but that conversion draws energy from the battery as well. Cummins’ RV generator FAQs describe this distinction between DC battery loads and AC appliances.
When is a separate charger or regulator useful?
For a separate house or auxiliary battery bank
A DC-to-DC charger can manage charging from an alternator-fed battery to a separate bank. It is not a universal add-on: suitability depends on system voltage, battery chemistry, charging profile, current limits, bank arrangement, and installation. Some units also provide input-current management or temperature protections. Before selecting one, compare those details against the alternator, batteries, and vehicle or vessel system.
Rank #3
- [13× Faster DC-DC Charger] - Delivers up to 1200W total charging power via dual input (800W alternator, 600W solar), for solar generators, 13× faster than a car cigarette lighter on the go.
- [Wide Compatibility] - The CHG port works with all BLUETTI and most third-party portable power stations. The new DC panel port supports an optional DC Hub for continuous in-vehicle DC loads (max 700W).
- [Emergency Car Jumpstart] - Reverse charge your starter battery with a BLUETTI power station or battery pack via the 𝑩𝑨𝑻 𝒑𝒐𝒓𝒕. Also includes Trickle Charge and Pulse Maintenance for battery care.
- [No Car Battery Drain] - Continuously monitors battery voltage, stops drawing power when the engine is off, and uses a precise D+ signal to communicate with modern smart alternators.
- [What You Get] - BLUETTI Charger 2 (Alternator & DC-DC charger), car battery cable, power station cable kit, MC4 input cable, bidirectional power cable, 75A fuse, self-tapping screws, and user manual.
Manufacturers document differing feature sets for products such as Dometic DCPM, KISAE DMT12100, REDARC BCDC Alpha, and Victron Orion XS. These are examples, not interchangeable fitment recommendations. For instance, KISAE lists a maximum output current of 100 A for the DMT12100; that is a product-specific rating, not a general expectation for DC-to-DC chargers.
When alternator charging needs external control

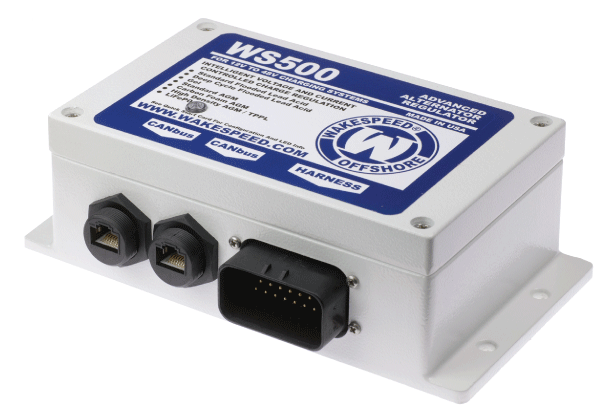

An external smart regulator controls the alternator’s charging behavior rather than simply charging a second bank through a DC-to-DC device. Wakespeed describes the WS500 regulator as using voltage, current, and temperature. Compatibility depends on the alternator, system voltage, battery and battery-management system (BMS), and installation. A regulator change should be evaluated as part of the full charging system, not selected by voltage rating alone.
Rank #4
- 6-in-1 Device - Combines a powerful jump starter, battery charger, battery maintainer, battery desulfator, battery tester, and alternator tester into one device
- High-Powered Performance - The Schumacher SC1308 delivers a 100 cranking amps engine start, which is strong enough to jump start cars, trucks, boats, and other large batteries, along with 30 amp boost, 6 amp charge, and 2 amp maintain modes
- Wide Compatibility - The SC1308 is compatible with 6 volt and 12 volt standard, AGM, and deep-cycle batteries
- Advanced Diagnostics - The Schumacher Electric SC1308 features a built-in battery and alternator tester that determines charge level and helps diagnose electrical problems
- Fully Automatic - The charger automatically detects connected 6 volt and 12 volt batteries and when the battery is fully charged, the unit stops charging and shifts to maintain mode
How can you check whether the alternator is charging?
A voltage check at the battery terminals with the engine running can offer a basic indication. Measure at the battery rather than relying only on an alternator-side reading: wiring voltage drop can make the latter misleading. The result still needs context. Vehicle design, regulator strategy, battery state, temperature, engine speed, wiring condition, and active loads can all affect the reading. Marine-oriented voltage guidance should not be applied as a universal pass/fail range for modern cars. West Marine’s battery and alternator guidance specifically addresses checking at the battery terminals.
If a reading seems unexpected, compare it with the vehicle and battery manufacturers’ specifications and test conditions. A single reading cannot isolate a weak battery, poor connection, wiring drop, alternator fault, or regulator behavior; those require system-specific diagnosis.
Quick Recap
Best Value
- Fast Alternator Charging: Alternator Charger is up to 8× faster than using a car auxiliary port. A 2kWh power station can be 100% in only 3 hours.
- Three Flexible Charging Ways: Ultrafast PPS Charging, Seamless RV Expansion, and Efficient Vehicle Battery Recharge.
- Extra 12kWh Capacity for RV: Pair with F3000 and 3 expansion batteries for 12kWh more capacity. Save time and charge while you're cruising down the highway.
- Compatible with 99% of RVs and Gas Vehicles: Select your battery type, and the charger automatically adjusts charging to protect your battery and prevent damage.
- Smart App Control: Connect via Bluetooth or Wi-Fi to control from your phone. Easily start or stop charging, switch modes, and adjust power remotely.
What should you verify before changing a charging system?
- Battery chemistry and the battery maker’s permitted charging profile.
- Nominal system voltage and the charging stages or regulation strategy required.
- Alternator capability and any input-current or alternator-protection requirements.
- Output current, number and configuration of battery banks, and the loads being served.
- Temperature protections, BMS interaction, and suitability for the vehicle’s operating environment.
- Installation limits and wiring requirements in the manuals for the vehicle, alternator, charger, regulator, and battery.
